Sleeve Bearing Thermal Plastic 4.8W DC Axial Fan
Sleeve Bearing Thermal Plastic 4.8W DC Axial Fan
Sleeve Bearing Thermal Plastic 4.8W DC Axial Fan
Sleeve Bearing Thermal Plastic 4.8W DC Axial Fan
Sleeve Bearing Thermal Plastic 4.8W DC Axial Fan

Sleeve Bearing Thermal Plastic 4.8W DC Axial Fan

Incoterm: FOB
Delivery Time: 10 Days

Contact Now Add to Basket

Download:

Basic Info

    Model No.: FS12025HDS

    Material: Thermal Plastic

    Color: Black

    Voltage: 12/24/48V

    Size: 120x120x25mm

    Rated Current: 0.1~0.55A

    Rated Imput Power: 2.1~10.8W

    Speed: 1800~3000RPM

    Air Flow: 68.45~150.11CFM

    Noise: 32~50dB

    Weight: 145g

Additional Info

    Packaging: Carton

    Productivity: 8000sets/day

    Brand: Kunpeng

    Transportation: Ocean,Land,Air

    Place of Origin: China

    Supply Ability: 8000sets/day

    Certificate: ISO9001

    Port: Shenzhen

Product Description

Axial flow fan is widely used, which is the air flow in the same direction as the axial direction of the blades, such as the electric fan, and the fan of the air conditioner is the axial flow mode. It is called "axial flow" because the gas flows parallel to the fan shaft. Axial flow fans are usually used in situations where the flow requirements are high and the pressure is low. Axial Fan fixed position and air movement. Axial flow fan mainly consists of fan impeller and chassis, simple structure but very high data requirements.


Production description

Parameter:

Frame: Thermal Plastic,UL 94V-0

Impeller: Thermal Plastic,UL 94V-0

Lead Wire: AWG#24 UL1007(Optional) (+):Red(-):Black

Insulation Resistance: Above 10M Between Lead wire and Frame DC500V

Life Expectancy: Ball bearing:over 50000hr(At 25 degree)

Sleeve bearing:over 30000hr(At 25 degree)



Specification:

Model

Bearing

Rated voltage(v)

Rated current

(A)

Rated
Imput
power(W)

Nominal speed

(RPM)

Air flow

(CFM)/(m^3/min)

Air pressure

Noise

(dB)

Weight(g)

FS12025DDA12B(S)

sleeve/ball

12

0.55

6.60

3000

150.11

4.20

5.82

0.23

50.0

145

FS12025HDA12B(S)

sleeve/ball

12

0.40

4.80

2400

114.00

3.19

4.45

0.18

41.0

FS12025MDA12B(S)

sleeve/ball

12

0.25

3.00

2000

92.52

2.59

3.65

0.14

36.0

FS12025LDA12B(S)

sleeve/ball

12

0.18

2.10

1800

68.45

1.92

2.68

0.11

32.0

FS12025DDA24B(S)

sleeve/ball

24

0.45

10.80

3000

150.11

4.20

5.82

0.23

50.0

FS12025HDA24B(S)

sleeve/ball

24

0.35

8.40

2400

114.00

3.19

4.45

0.18

41.0

FS12025MDA24B(S)

sleeve/ball

24

0.20

4.80

2000

92.52

2.59

3.65

0.14

36.0

FS12025LDA24B(S)

sleeve/ball

24

0.13

3.12

1800

68.45

1.92

2.68

0.11

32.0

FS12025HDA48B(S)

sleeve/ball

48

0.15

7.20

3000

133.05

3.73

5.21

0.21

45.0

FS12025MDA48B(S)

sleeve/ball

48

0.10

4.80

2700

92.52

2.59

3.65

0.14

36.0


Certification

Our company has been ISO9001-2000 international quality management system certification as the purpose, now introduced to the environmental management system.

The products are certified by many countries and regions, such as: UL, CCC, TUV, CE and so on.

Certification


About Us

Shenzhen Fu Sheng Electric Co.,LTD.is professional manufacturer of DC/AC/EC containing brush less axial compressor,cross current flow,centrifugal Cooling Fan,it is set up in October 2004 located in the beautiful scenery and developed economy,Shenzhen City,Guangdong Province.We have been working hard in the industry field and the enterprise has been a considerable scale.Because of the advantages of the business philosophy,has been a good product price and quality service to win the market,To win the trust of customers.Our products are widely used in IT field,Sports equipment,ventilation equipment,welding equipment, power systems,medical electronic equipment,machinery and equipment etc.

company picture


Why Choose Us?

1.Product diversification, DC, AC, EC full series of brushless axial flow, cross flow, Centrifugal Fan.

2.14 years of production experience, to provide you with quality assurance.

3.Professional and technical personnel and advanced production equipment.

4.7x24 hours service online, welcome to consult, to provide you with high quality service.

5.Protection of your sales area,ideas of desigen and all your private information.


Packing and Shipment

shipment

1.Standard carton assembly

2.You can choose sea, air, land, and international express, or the mode of transportation according to the customer's request.

3.The delivery time is 7~10 days, according to the quantity of the goods.

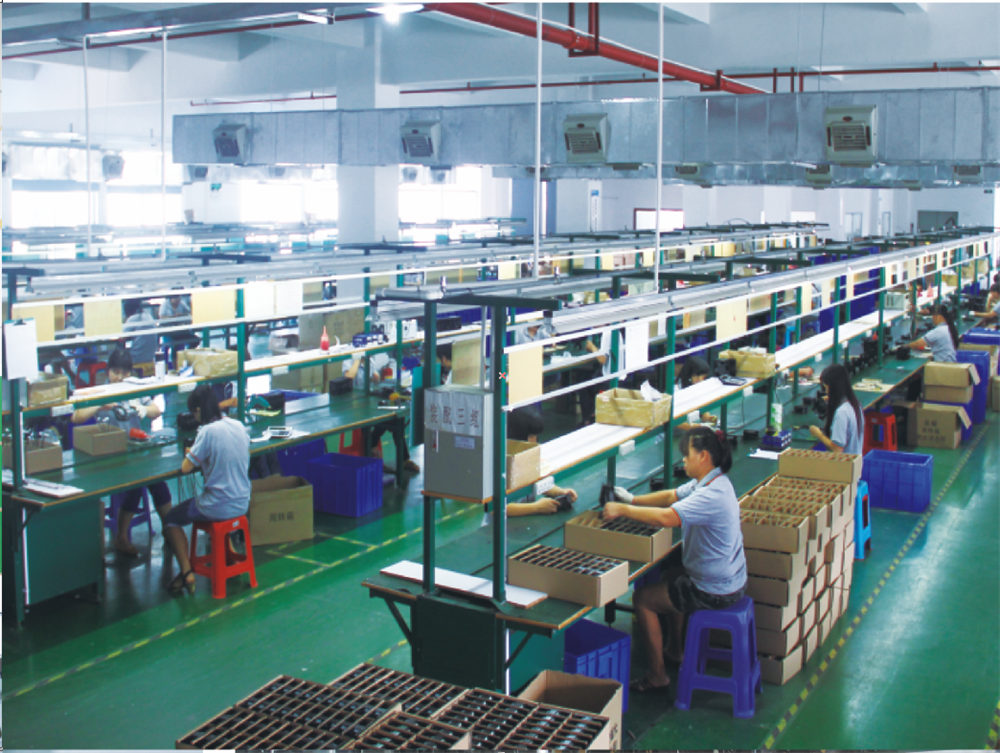

Factory Picture

Factory picture

Product Images

Sleeve bearing DC axial fanSleeve bearing DC axial fanSleeve bearing DC axial fanSleeve bearing DC axial fanSleeve bearing DC axial fan


Looking for ideal Sleeve Bearing Axial Fan Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 4.8W DC Axial Fan are quality guaranteed. We are China Origin Factory of Thermal Plastic DC Axial Fan. If you have any question, please feel free to contact us.
