On air conditioning and gas water heater, AC induction motor will be completely replaced by the application of the DC Brushless Fan. With the advances in technology, DC brushless motor fan will also be applied in the fields of industry powering and automation, commercial devices, household appliances, medical equipment, energy system. In structure, Brushless DC Fan is greatly simplified because of saving the collector ring and brush for excitation. At the same time air gap flux density can be greatly improved, the motor index can achieve optimal design, the direct effect is the motor volume reduction, weight reduction. Not only that, compared with other motor, but also has very excellent control performance. At the same time, it not only improves the technological property of the motor, but also increases the mechanical reliability of the motor and increases the life of the motor.
1. Production Description
1-1. Parameter:
Frame: Thermal Plastic,UL 94V-0
Impeller: Thermal Plastic,UL 94V-0
Lead Wire: AWG#24 UL1007(Optional), (+):Red(-):Black
Insulation Resistance: Above 10M Between Lead wire and Frame DC500V
1-2. Specification:
| Model | Bearing | Rated voltage(v) | Rated current (A) | Rated
Imput
power(W) | Nominal speed (RPM) | Air flow | Air pressure | Noise (dB) | Weight(g) |
| FS9733DDB12B(S) | sleeve/ball | 12 | 0.80 | 9.60 | 3200 | 26.33 | 0.73 | 10.88 | 0.43 | 52.0 | 95 |
| FS9733DDB12B(S) | sleeve/ball | 12 | 0.55 | 6.60 | 2800 | 22.50 | 0.63 | 9.28 | 0.36 | 47.0 |
| FS9733DDB12B(S) | sleeve/ball | 12 | 0.45 | 5.40 | 2400 | 18.35 | 0.51 | 7.75 | 0.30 | 41.0 |
| FS9733DDB12B(S) | sleeve/ball | 12 | 0.35 | 4.20 | 2000 | 15.05 | 0.42 | 6.23 | 0.24 | 35.0 |
| FS9733DDB24B(S) | sleeve/ball | 24 | 0.55 | 13.20 | 3200 | 26.33 | 0.73 | 10.88 | 0.43 | 52.0 |
| FS9733DDB24B(S) | sleeve/ball | 24 | 0.40 | 9.60 | 2800 | 22.50 | 0.63 | 9.28 | 0.36 | 47.0 |
| FS9733DDB24B(S) | sleeve/ball | 24 | 0.35 | 8.40 | 2400 | 18.35 | 0.51 | 7.75 | 0.30 | 41.0 |
| FS9733DDB24B(S) | sleeve/ball | 24 | 0.25 | 6.00 | 2000 | 15.05 | 0.42 | 6.23 | 0.24 | 35.0 |
1-3. Test for fans
2. Certification
Our company has been ISO9001-2000 international quality management system certification as the purpose, now introduced to the environmental management system. The products are certified by many countries and regions. Such as: UL, CCC, TUV, CE and so on.
3. ABOUT US
Shenzhen Fu Sheng Electric Co.,LTD.is professional manufacturer of DC/AC/EC containing brush less axial compressor,cross current flow,centrifugal Cooling Fan,it is set up in October 2004 located in the beautiful scenery and developed economy,Shenzhen City,Guangdong Province.We have been working hard in the industry field and the enterprise has been a considerable scale.Because of the advantages of the business philosophy,has been a good product price and quality service to win the market,To win the trust of customers.Our products are widely used in IT field,Sports equipment,ventilation equipment,welding equipment, power systems,medical electronic equipment,machinery and equipment etc.
4. WHY CHOOSE US?
1.Product diversification, DC, AC, EC full series of brushless axial flow, cross flow, Centrifugal Fan.
2.14 years of production experience, to provide you with quality assurance.
3.Professional and technical personnel and advanced production equipment.
4.One Week 7x24 hours service online, welcome to consult, to provide you with high quality service.
5.Protection of your sales area,ideas of design and all your private information.
5. Packing and Shipment
1.Standard carton assembly
2.You can choose sea, air, land, and international express, or the mode of transportation according to the customer's request.
3.The delivery time is 7~10 days, according to the quantity of the goods.
6. Factory and Equipment

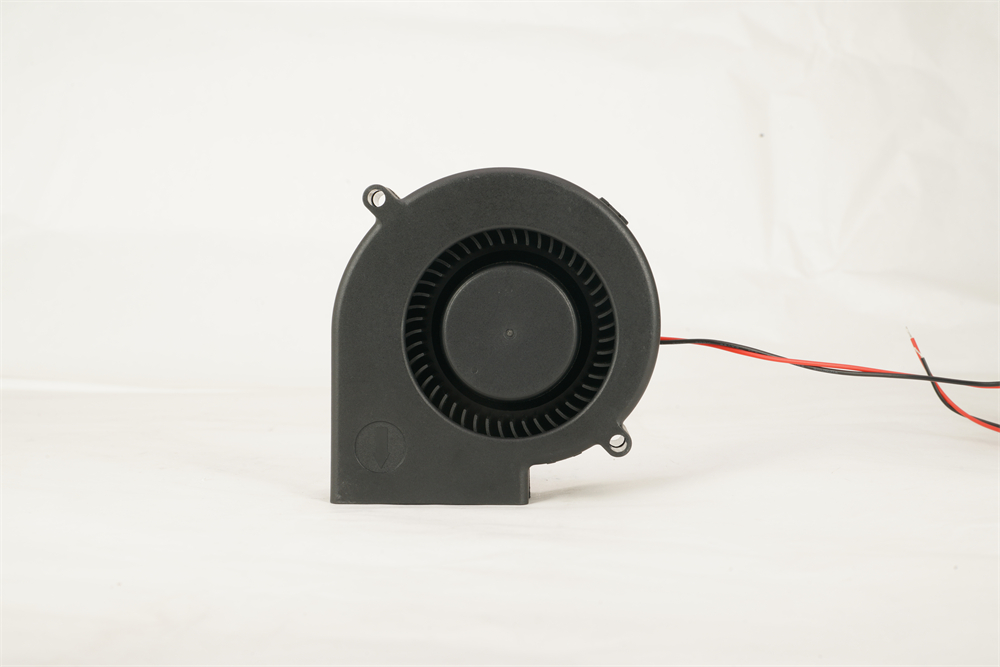

7. Product Images
Looking for ideal Mini DC Brushless Fans Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the DC Brushless Fans for Vacuum Cleaner are quality guaranteed. We are China Origin Factory of 9733 Fans for Vacuum Cleaner. If you have any question, please feel free to contact us.
