AC Fan

What about the Ac Cooling Fan? Where are they to use?

Let's keep understanding

AC motor is used to achieve the exchange of mechanical energy and AC power of machinery.

Due to the tremendous development of AC power systems, AC motors have become the most commonly used motors.

Compared with the direct current motor, the alternating current motor does not have a commutator (see commutation of the direct current motor), so the structure is simple, the manufacture is convenient, the structure is firm and the motor with high speed, high voltage, high current and large capacity can be easily made. AC motor power range, ranging from a few watts to several hundred thousand kilowatts, or even millions of kilowatts. In the early 1980s, the largest turbine generator reached 1.5 million kilowatts. The AC motor was invented by a Serbian American scientist Nikola Tesla

AC, referred to as AC. also known as "alternating current", referred to as "exchange." Generally refers to the size and direction of the cyclical changes over time voltage or current. Its most basic form is a sinusoidal current.Hippolyte Pixii created the first AC motor based on the principle of Michael Faraday by Michael Faraday in 1832

AC Cooling Fan side table

side	voltage	bearing	line materials	current	weight(g)	remark
6030	110V/220V	sleeve/ball	QA	normal	145
8025	110V/221V	sleeve/ball	QA	normal	240
8038	110V/222V	sleeve/ball	QA	normal	290
9225	110V/223V	sleeve/ball	QA	normal	280
9238	110V/224V	sleeve/ball	QA	normal	340
11025	110V/225V	sleeve/ball	QA	normal	300
12025	110V/226V	sleeve/ball	QA	normal	320
12038	110V/227V	sleeve/ball	QA/CCA	normal	530	CCA old-ball
13538	110V/228V	sleeve/ball	QA	normal	570
15050	110V/220V/380V	sleeve/ball	QA/CCA	normal	800
17238	110V/220V/381V	sleeve/ball	QA	normal	760
17251	110V/220V/382V	sleeve/ball	QA/CCA	normal	800
17255	110V/220V/383V	sleeve/ball	QA	normal	850
18060	110V/220V/384V	sleeve/ball	QA/CCA	normal	950
20060	110V/220V/385V	sleeve/ball	QA/CCA	normal	1540
22060	110V/220V/386V	sleeve/ball	QA/CCA	normal	1540
22580	110V/220V/387V	sleeve/ball	QA	normal	2140
25489	110V/220V/388V	sleeve/ball	QA	normal	1900
30030	110V/220V/389V	sleeve/ball	QA	normal	2900
DY-2	110V/228V	sleeve/ball	QA	normal	1000

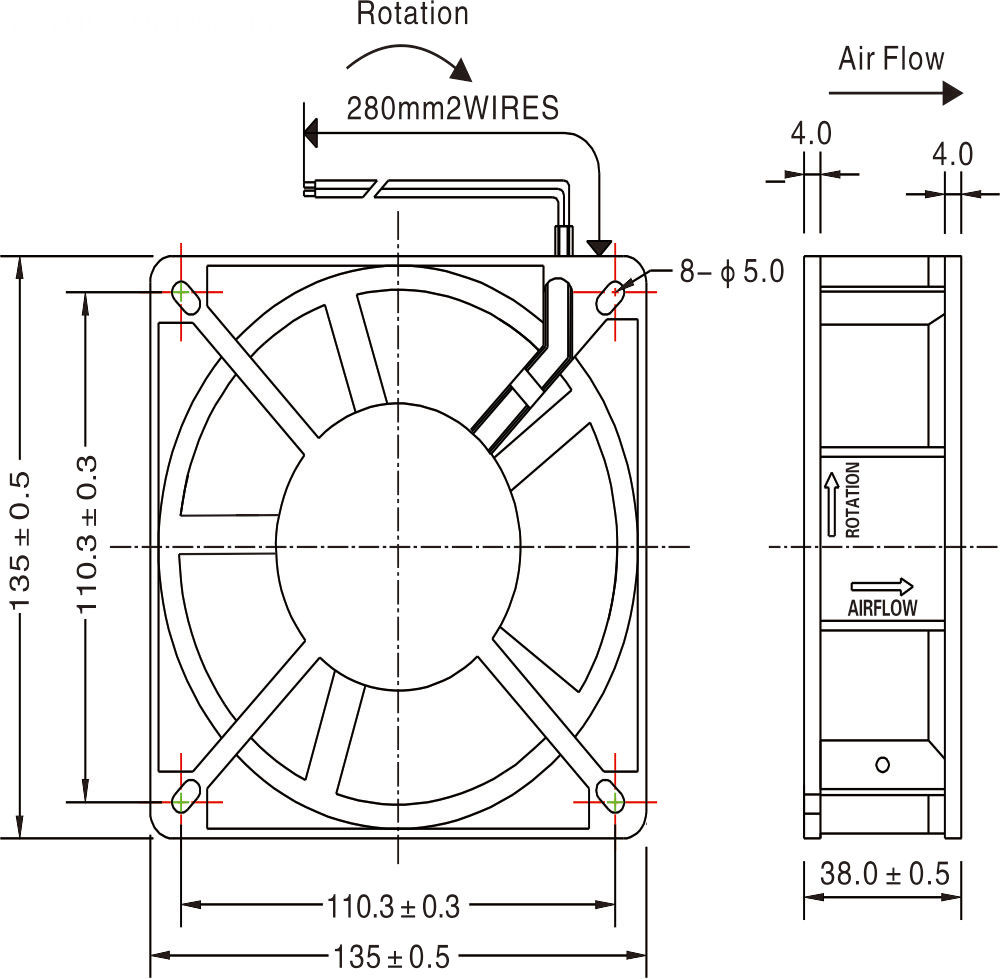

As shown 12038 AC Cooling Fan

It can be used for ventilating or enhancing the heat dissipation in metallurgy, chemical industry, light industry, foodstuff, medical equipment, machinery equipment and civil buildings, etc. If the case is removed, it can also be used as a free fan, The pipes are installed in series in order to increase the pressure in the pipes.

Axial Fan features:

Small axial fans: low power consumption, fast cooling, low noise, energy saving and environmental protection. Because of its small size and more extensive use.
